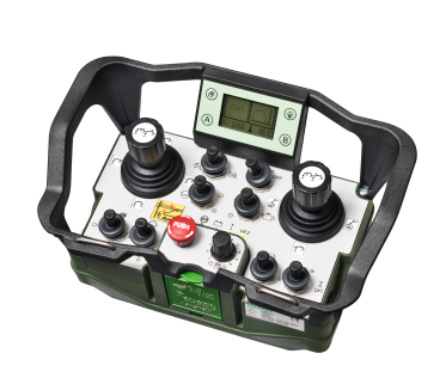

德国TELETEC无线工业遥控器-TMS-16-南京恒拓

德国TELETEC无线工业遥控器-TMS-16-南京恒拓

SERIE FW50

JOYSTICK TRANSMITTER TMS-16

The all-rounder
The compact radio transmitter TMS-16 combines ergonomic excellence and a lightweight but also robust housing. As a true all-rounder it can be used for different tasks. In the construction machinery sector it is, among others, perfectly suited for concrete pumps. Power is supplied to the radio transmitter by means of a change-over battery AK5 without memory effect, based on proven NiMH technology, providing a continuous operation time of up to 16 hours. It can be replaced quickly, if needed.

Technical data

TypeTMS-16
Toggle and rotary switch, pushbuttonyes
Joystick with z-axisyes (with start value lock-in position)
Battery typechangeover battery AK5
Operational hoursup to 16 hours under continuous operation
Energy saving modeyes (adjustable)
IR release (optionally)yes
Feedback (optional)yes (with LC display or LED)
Signaler (optional)yes (in IP67 execution)
Frequency range433.075 to 434.750 MHz / 869.725 to 869.975 MHz / 2.4 GHz
Changing frequenciesyes (manual switch between the radio channels)
Operating rangeup to 300 m / up to 200 m
Transmitting power≤ 10 mW / ≤ 100 mW
Protective system/temperature rangeIP65 / -20 to +60 °C
Dimensions (W x H x D)288 x 135 x 186 mm
Weight1500 g
