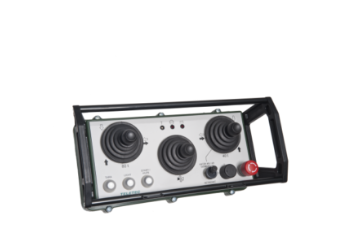

JOYSTICK TRANSMITTER
TMS-51 TO TMS-55
The Individualists
The radio transmitters TMS-51 to TMS-55 (5 robust housing versions) can be customized to meet all requirements – among others, an optimal front panel design according to the needs of the customer. Power is supplied from a change-over battery AK2 to the transmitter without memory effect, based on proven NiMH technology, providing a continuous operation time of up to 12 hours. The transmitter are also available as replacement transmitter for Serie FW30 und FW40.
MAKE A REQUEST
Medium-sized transmitter to be carried with a shoulder strap
LED indication for transmitter status
Numerous combinations of different command elements (joysticks, toggle switches and buttons) are possible
Optional feedback data can be indicated specifically on the OLED/LED display
Internal diagnosis interfaces for the service
Optional with built-in infrared transmitter to release the existing radio connection
Optional Windows based diagnosis software for parameter adjustment and inspection
Can be used as a standby transmitter for up to 11 different transmitters
Technical data
| Type | TMS-51 to TMS-55 |
| Pushbutton | yes |
| Joysticks | yes |
| Battery type | changeover battery AK2 |
| Operational hours | up to 12 hours under continuous operation |
| Energy saving mode | yes (adjustable) |
| Infrared release (optional) | yes |
| Feedback (optional) | yes (with OLED/LCD display or LED) |
| Frequency range | 433.075 to 434.750 MHz / 869.725 to 869.975 MHz / 2,4 GHz |
| Operating range | up to 300 m / up to 200 m |
| Transmitting power | ≤ 10 mW / ≤ 100 mW |
| Protection class/operat. temp. | IP65 / -20 to +60 °C |
| Dimensions | various |
| Weight | 1.6 kg to 2.7 kg (incl. changeover battery) |
